General Purpose Plugs for Type L and M Tubing

GKP

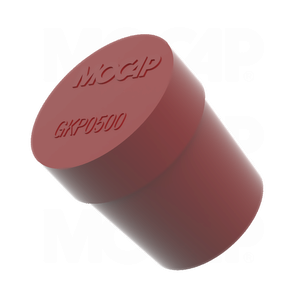

Polyethylene Plugs for Type L and M Tubing
General Purpose Plugs for Type L and M Tubing

GKP–Product Media

General Purpose Plugs for Type L and M Tubing Type L and M Tubing Plastic Stopper Plastic Plug Caps - Type L Tubing and Type M Tubing Plastic Cork for Type L and M Tubing General Purpose Plugs for Type L and M Tubing Polyethylene Plugs for Type L and M Tubing Type L and M Tubing Plastic Stopper Plastic Plug Caps - Type L Tubing and Type M Tubing
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Designed for Flange to Fit Flush with Outside Wall of Tube

Size Chart Plastic Plug Caps - Type L Tubing and Type M Tubing

GKP Size Chart

Table View
List View
Part # Description To Fit Tube Size Small O.D.
mm
in
Large O.D.
mm
in
Flange OD
mm
in
Flange Thickness
mm
in
Length
mm
in
Inside Diameter
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
GKP0188 General Purpose Plugs for Type L and M Tubing - GEN PURPOSE PLUG FOR 3/16 TYPE K J-528 TUBING 3/16
2.7
0.105
3.5
0.138
4.8
0.190
4.8
0.190
7.9
0.310
1.1
0.042
10000 2000 200
GKP0250 Plastic Cork for Type L and M Tubing - GEN PURPOSE PLUG FOR 1/4 TYPE K J-528 TUBING 1/4
4.1
0.160
5.1
0.202
6.1
0.240
3.6
0.140
9.7
0.380
2.5
0.097
5000 1000 100
GKP0313 Plastic Plug Caps - Type L Tubing and Type M Tubing - GEN PURPOSE PLUG FOR 5/16 TYPE K J-528 TUBING 5/16
5.8
0.227
6.9
0.272
7.9
0.310
3.6
0.140
9.7
0.380
4.2
0.164
5000 1000 100
GKP0375 Type L and M Tubing Plastic Stopper - GEN PURPOSE PLUG FOR 3/8 TYPE K J-528 TUBING 3/8
7.4
0.290
8.6
0.340
9.4
0.370
4.1
0.160
9.7
0.380
5.8
0.227
5000 1000 100
GKP0500 Polyethylene Plugs for Type L and M Tubing - GEN PURPOSE PLUG FOR 1/2 TYPE K J-528 TUBING 1/2
10.4
0.411
11.8
0.466
12.7
0.500
4.1
0.160
9.7
0.380
8.8
0.348
5000 1000 100
GKP0625 General Purpose Plugs for Type L and M Tubing - GEN PURPOSE PLUG FOR 5/8 TYPE K J-528 TUBING 5/8
13.5
0.530
14.9
0.587
15.7
0.620
4.8
0.190
14.2
0.560
11.9
0.467
5000 1000 100
GKP0750 Plastic Cork for Type L and M Tubing - GEN PURPOSE PLUG FOR 3/4 TYPE K J-528 TUBING 3/4
16.5
0.650
18.1
0.712
19.1
0.750
4.8
0.190
14.2
0.560
14.9
0.587
5000 1000 100
Part # Description To Fit Tube Size Small O.D.
mm
in
Large O.D.
mm
in
Flange OD
mm
in
Flange Thickness
mm
in
Length
mm
in
Inside Diameter
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



General Purpose Plugs for Type L and M Tubing - Information

MOCAP General Purpose Plugs for Type L and M Tubing are designed for applications where the outside diameter of the plug should not exceed the outside diameter of the tubing. The plug flange fits flush with the outside wall of the tubing.
Protects tubing from moisture, dust and damage during production, shipping and storage.
Our GKP Series Plugs are moulded in Red polyethylene plastic and sized to fit Type L & M Tubing from 3/16 thru 3/4.

Many Sizes of Our General Purpose Plugs for Type L and M Tubing are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.
