Flanged Plastic Caps for Metric Threads

FCM

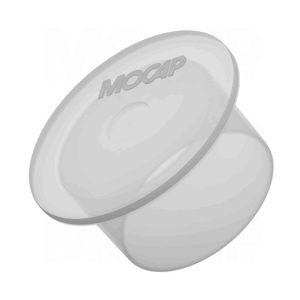

Polyethylene Plastic Flanged Caps for Metric Threads
MOCAP Metric Threads - Flanged Plastic Caps
  • Material: Low-Density Polyethylene (NATURAL)
  • Flanged for Easy Removal
  • Use as Thread Protector or End Cap

FCM – Product Media

Metric Threads - Flared Plastic Caps Metric Threads - Flanged Plastic Caps Plastic Flanged Caps for Metric Threads Polyethylene Plastic Flanged Caps for Metric Threads Flanged Plastic Caps for Metric Threads - MOCAP is a manufacturer of quality plastic and rubber components for product protection, masking and finishing applications. View our wide selection of plastic and rubber products including caps, plugs, handle grips, tube plugs, hole plugs, high temperature tapes, plastic netting and our molding services including dip-moulding, plastic injection, rubber molding and plastic extrusion services. For more information, or for custom designs and parts, contact us at 0800 856 2466

Size Chart

PrintPrint

FCM Size Chart

Default Part # Description Product Range To Fit METRIC Thread Inside Diameter
mm
Inside Length
mm
Flange OD
mm
Box/Mini/Micro
QTY
See Prices / Buy Online
Default Part # Description Product Range To Fit METRIC Thread Inside Diameter
mm
Inside Length
mm
Flange OD
mm
Box/Mini/Micro
QTY
See Prices / Buy Online
1 FCM-5NA1 FLANGE CAP FOR 5MM MTRC THRDS LDPE NATURAL FCM M5 4.9 15.0 12.5 5000 1000 100
0.0156 to 0.1736
Sample
2 FCM-6NA1 FLANGE CAP FOR 6MM MTRC THRDS LDPE NATURAL FCM M6 5.9 20.0 13.5 5000 1000 100
0.0156 to 0.1736
Sample
3 FCM-8NA1 FLANGE CAP FOR 8MM MTRC THRDS LDPE NATURAL FCM M8 7.8 20.0 15.5 5000 1000 100
0.0156 to 0.1519
Sample
4 FCM-10NA1 FLANGE CAP FOR 10MM MTRC THRDS LDPE NATURAL FCM M10 9.8 8.2 17.5 5000 1000 100
0.0187 to 0.1829
Sample
5 FCM-12NA1 FLANGE CAP 12MM MTRC THRDS LDPE NATURAL FCM M12 11.8 11.9 19.5 5000 1000 100
0.0214 to 0.21
Sample
6 FCM-14NA1 FLANGE CAP 14MM MTRC THRDS LDPE NATURAL FCM M14 13.7 11.9 21.5 5000 1000 100
0.0223 to 0.1875
Sample
7 FCM-16NA1 FLANGE CAP 16MM MTRC THRDS LDPE NATURAL FCM M16 15.7 11.9 23.5 5000 1000 100
0.0248 to 0.209
Sample
8 FCM-18NA1 FLANGE CAP 18MM MTRC THRDS LDPE NATURAL FCM M18 17.7 11.9 25.5 5000 1000 100
0.0258 to 0.2166
Sample
9 FCM-20NA1 FLANGE CAP 20MM MTRC THRDS LDPE NATURAL FCM M20 19.7 14.1 27.5 5000 1000 100
0.0266 to 0.1868
Sample
10 FCM-22NA1 FLANGE CAP 22MM MTRC THRDS LDPE NATURAL FCM M22 21.7 14.1 29.5 5000 1000 100
0.0302 to 0.2115
Sample
11 FCS1-1/16NA1 FLANGE CAP FOR 1.0625" (1-1/16") STR/M27 THRDS LDPE NATURAL FCS M27 26.7 19.1 33.3 2400 480 48
0.0343 to 0.2407
Sample
12 FCS1-3/16NA1 FLANGE CAP FOR 1.1875" (1-3/16") STR/M30 THRDS LDPE NATURAL FCS M30 29.8 19.1 36.6 2000 400 40
0.0345 to 0.2417
Sample
13 FCM-33NA1 FLANGE CAP 33MM MTRC THRDS LDPE NATURAL FCM M33 32.6 17.5 40.5 2000 400 40
0.0371 to 0.2604
Sample
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.

0.0156 to 0.2604


Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



Flanged Plastic Caps for Metric Threads - Information

MOCAP FCM Series of flanged polyethylene plastic caps are designed to protect metric threads with and without o-rings. Flanged caps for standard metric threads are easy to assemble or remove by hand or automated equipment.
The natural colour of the flanged plastic caps allows visual verification of the threads or o-ring. FCM Series available in sizes to fit M5 through M33 metric threads.

Additional series available to fit Standard Straight Threads and BSP & NPT Threads.

  • Use as Thread Protector or End Cap
  • Sizes Also Available For Standard Straight, BSP & NPT Threads and Fittings
  • Flanged for Easy Removal



Many Sizes of Our Flanged Plastic Caps for Metric Threads are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 856 2466 or use our Contact Request Form to receive information by e-mail.







RoHS
