Threaded Plastic Plugs for Inverted Flared Fittings

IFP


Threaded Plastic Plugs for boss-type fittings
Threaded Plastic Plugs for Inverted Flared Fittings

IFP–Product Media

Threaded Plastic Plugs for Inverted Flared Fittings Threaded Plug Caps for Inverted Flared Fittings Plastic Bolt for Inverted Flared Threaded Fittings Inverted Flare Tube Fittings (Polyethylene Plastic) Threaded Plastic Plugs for Inverted Flared Fittings Threaded Plastic Plugs for boss-type fittings Threaded Plug Caps for Inverted Flared Fittings Plastic Bolt for Inverted Flared Threaded Fittings Inverted Flare Tube Fittings (Polyethylene Plastic)
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Knurled Grip for Easy On-Off Application and Can be Used to Seal Boss-Type Fittings without Gaskets

Size Chart Plastic Bolt for Inverted Flared Threaded Fittings

IFP Size Chart

Table View
List View
Part # Description To Fit STD Thread Length
mm
in
Flange OD
mm
in
Flange Thickness
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
IFP300 Threaded Plastic Plugs for Inverted Flared Fittings - PLUG FOR 5/16-28 INVERTED FLARED FITTING 5/16 - 28
5.6
0.220
11.2
0.440
4.8
0.190
5000 1000 100
IFP310 Inverted Flare Tube Fittings (Polyethylene Plastic) - PLUG FOR 3/8-24 INVERTED FLARED FITTING 3/8 - 24
6.4
0.250
12.7
0.500
4.8
0.190
4000 800 80
IFP320 Plastic Bolt for Inverted Flared Threaded Fittings - PLUG FOR 7/16-24 INVERTED FLARED FITTING 7/16 - 24
6.9
0.270
16.0
0.630
4.8
0.190
5000 1000 100
IFP330 Threaded Plug Caps for Inverted Flared Fittings - PLUG FOR 1/2-20 INVERTED FLARED FITTING 1/2 - 20
7.1
0.280
17.5
0.690
6.4
0.250
5000 1000 100
IFP340 Threaded Plastic Plugs for boss-type fittings - PLUG FOR 5/8-18 INVERTED FLARED FITTING 5/8 - 18
7.9
0.310
20.6
0.810
6.4
0.250
3000 600 60
IFP350 Threaded Plastic Plugs for Inverted Flared Fittings - PLUG FOR 5/8-18 INVERTED FLARED FITTING LONG 5/8 - 18
12.7
0.500
20.6
0.810
6.4
0.250
3000 600 60
IFP360 Inverted Flare Tube Fittings (Polyethylene Plastic) - PLUG FOR 11/16-18 INVERTED FLARED FITTING 11/16 - 18
7.9
0.310
22.1
0.870
6.4
0.250
3000 600 60
IFP370 Plastic Bolt for Inverted Flared Threaded Fittings - PLUG FOR 3/4-18 INVERTED FLARED FITTING 3/4 - 18
9.7
0.380
22.1
0.870
6.4
0.250
5000 1000 100
IFP380 Threaded Plug Caps for Inverted Flared Fittings - PLUG FOR 1-1/16-16 INVERTED FLARED FITTING 1-1/16 - 16
10.9
0.430
30.2
1.190
6.4
0.250
1500 300 30
Part # Description To Fit STD Thread Length
mm
in
Flange OD
mm
in
Flange Thickness
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



Threaded Plastic Plugs for Inverted Flared Fittings - Information

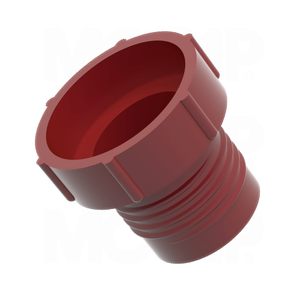

MOCAP Threaded Plastic Plugs are designed for use on Inverted Flared fittings. These Threaded Plastic Plugs are ridged for easy use in manual assembly and removal. They can also be used to seal boss-type fittings without gaskets.
Protects threaded fittings from moisture, dust and damage during production, shipping and storage.
Our IFP Series Threaded Plugs are moulded in Red polyethylene plastic and sized to fit Inverted Flared Fittings from 5/16-28 thru 1-1/16-16.

Many Sizes of Our Threaded Plastic Plugs for Inverted Flared Fittings are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
